Cylinder Regulators

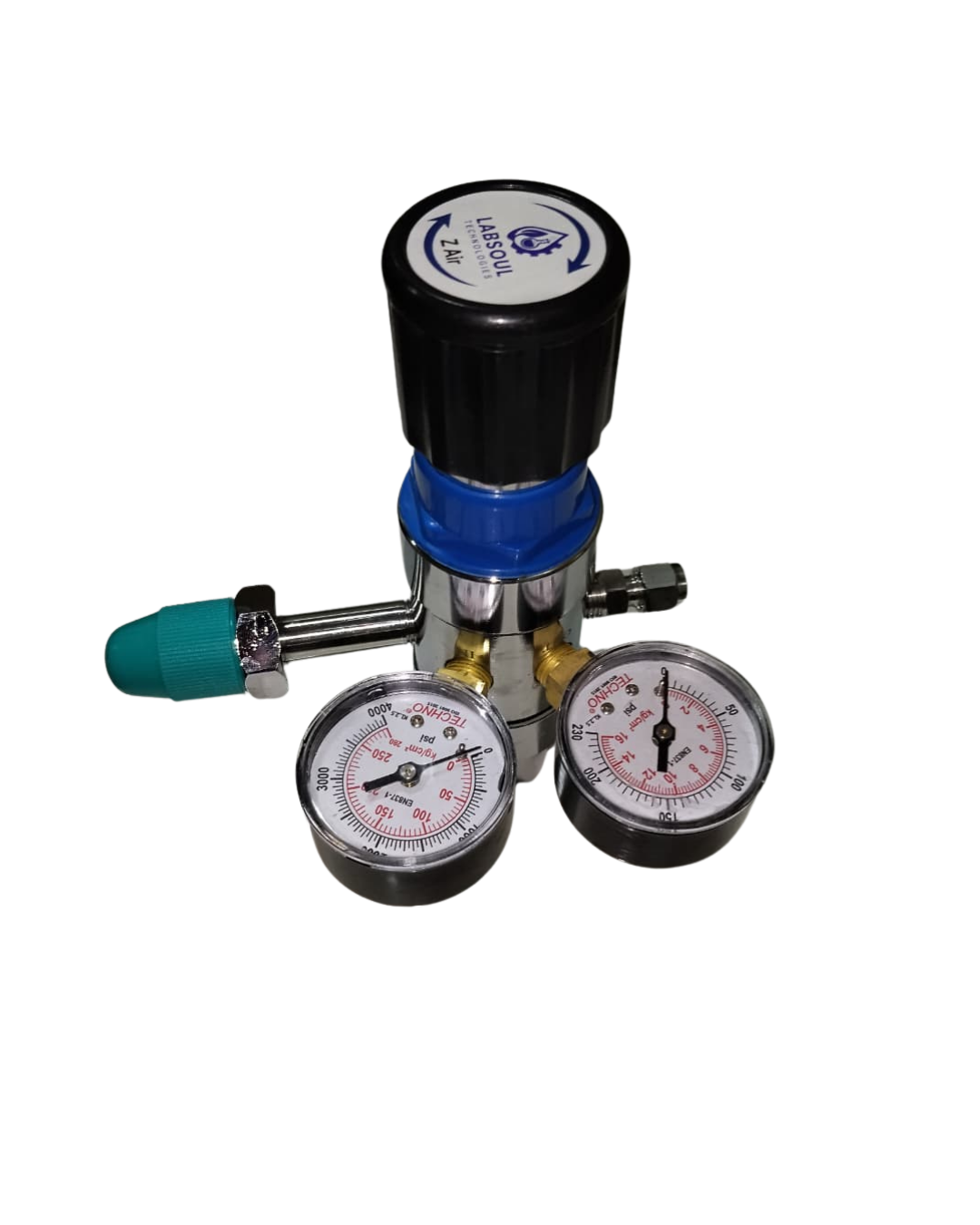

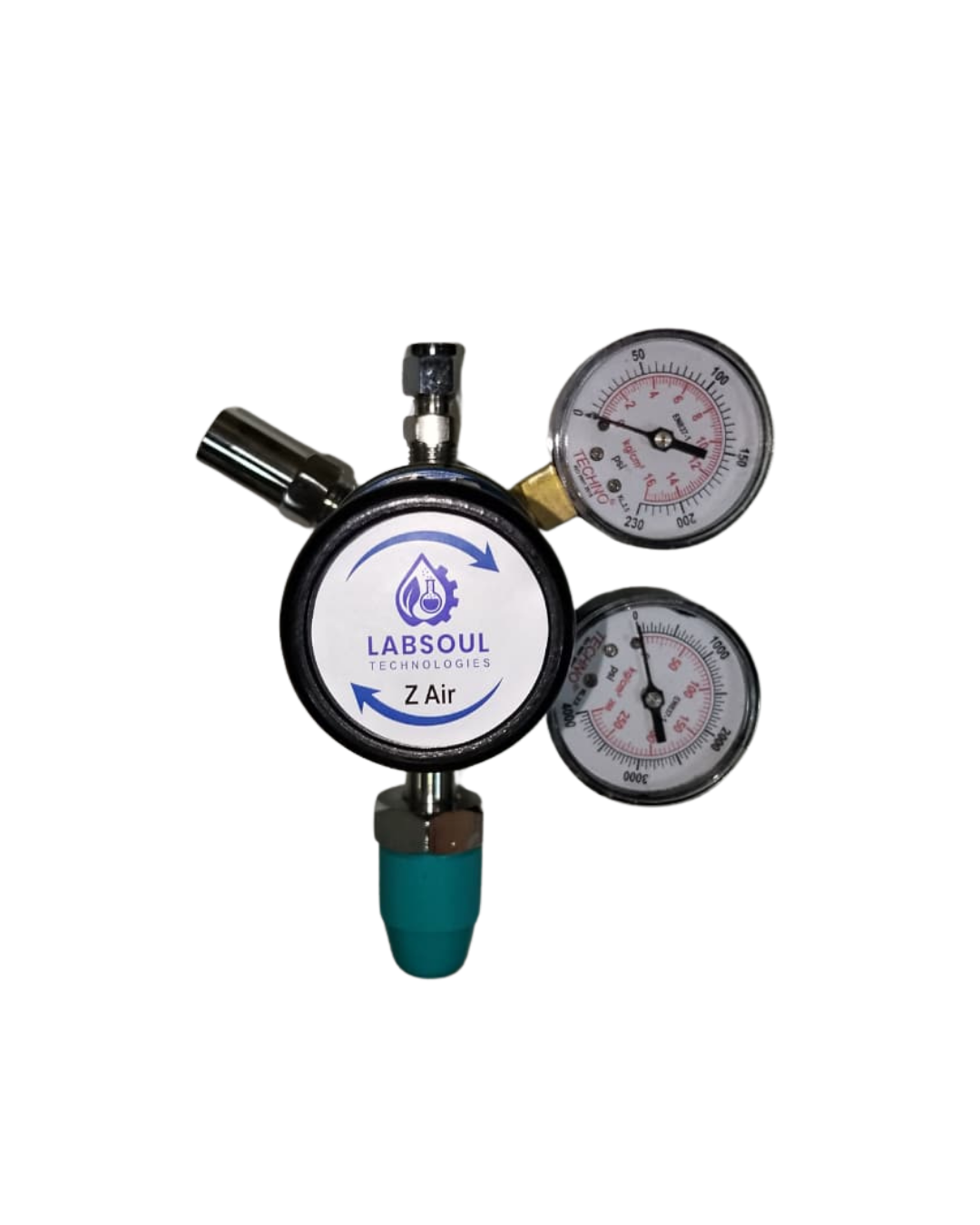

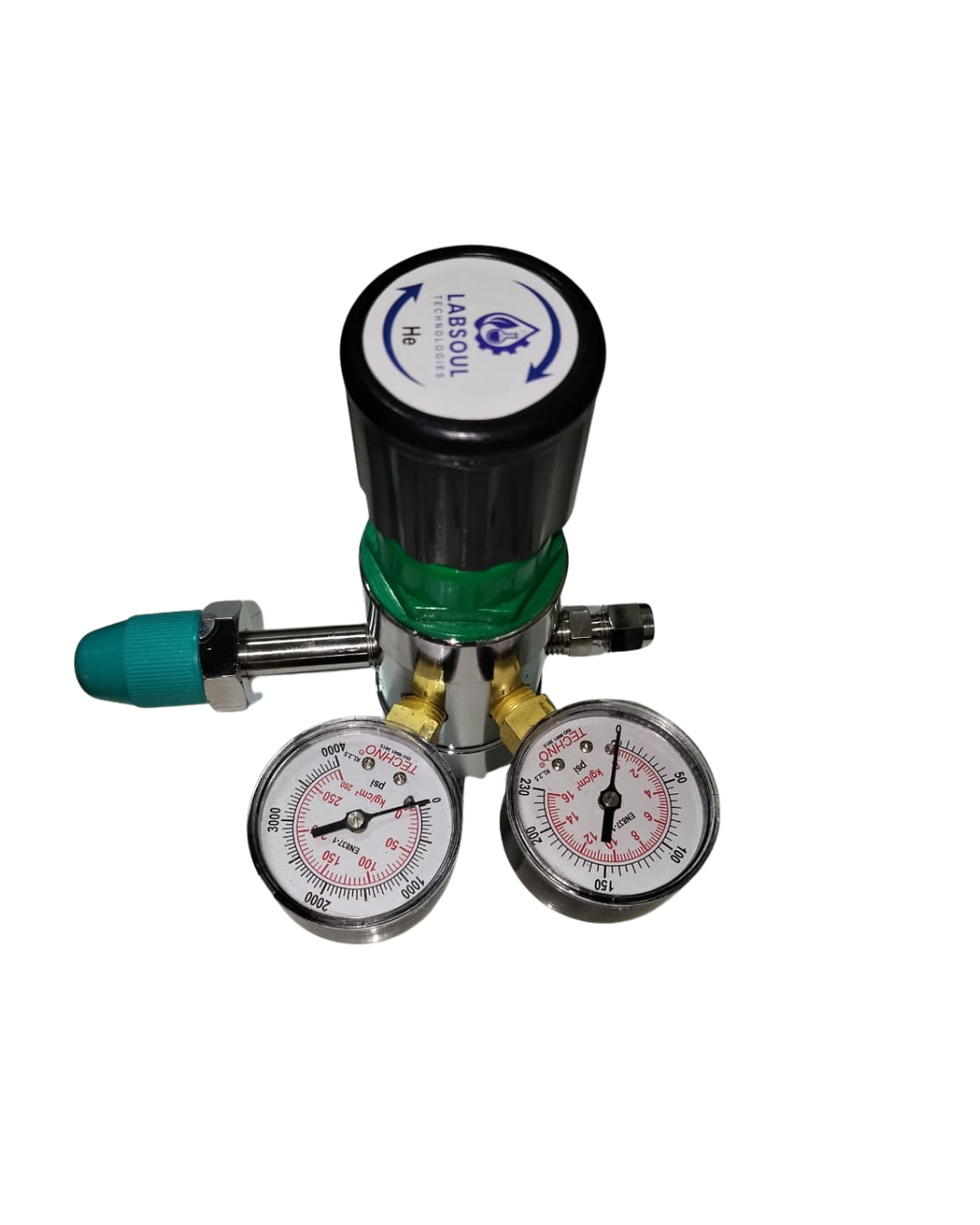

This single-stage diaphragm-type cylinder regulator is engineered to reduce high cylinder pressure to a stable and controlled low pressure. It includes inlet and outlet pressure gauges, a robust regulator body, optional safety relief valve, and a choice of outlet connections. Built using SS316, brass, monel, or hastelloy depending on gas compatibility. Suitable for laboratories, pharmaceuticals, welding, and chemical industries.
Key Specifications
- ✓Single diaphragm design
- ✓Body & bonnet: SS316L / Brass chrome plated / Monel / Hastelloy
- ✓Diaphragm: SS316 / Monel / Hastelloy
- ✓Inlet & outlet pressure gauges (SS316L or Brass)
- ✓Outlet pressure range: Max 0–18 bar
- ✓Leak integrity: < 1 × 10⁻⁶ mBar l/s (Body), < 1 × 10⁻³ mBar l/s (Seat)
- ✓Working temperature: -50°C to +200°C
- ✓Outlet connection options: 1/8", 1/4", 3/8", 1/2" (PU / ODCF / BSP / NPT)
- ✓Maximum flow: 450 LPM @ 18 Bar
- ✓Safety valve optional
Applications & Use Cases
▸
Welding & cutting industries
▸
Laboratories
▸
Pharmaceuticals
▸
Chemicals & petrochemicals
▸
Autoclave & pilot plant
