Gas Supply Panel

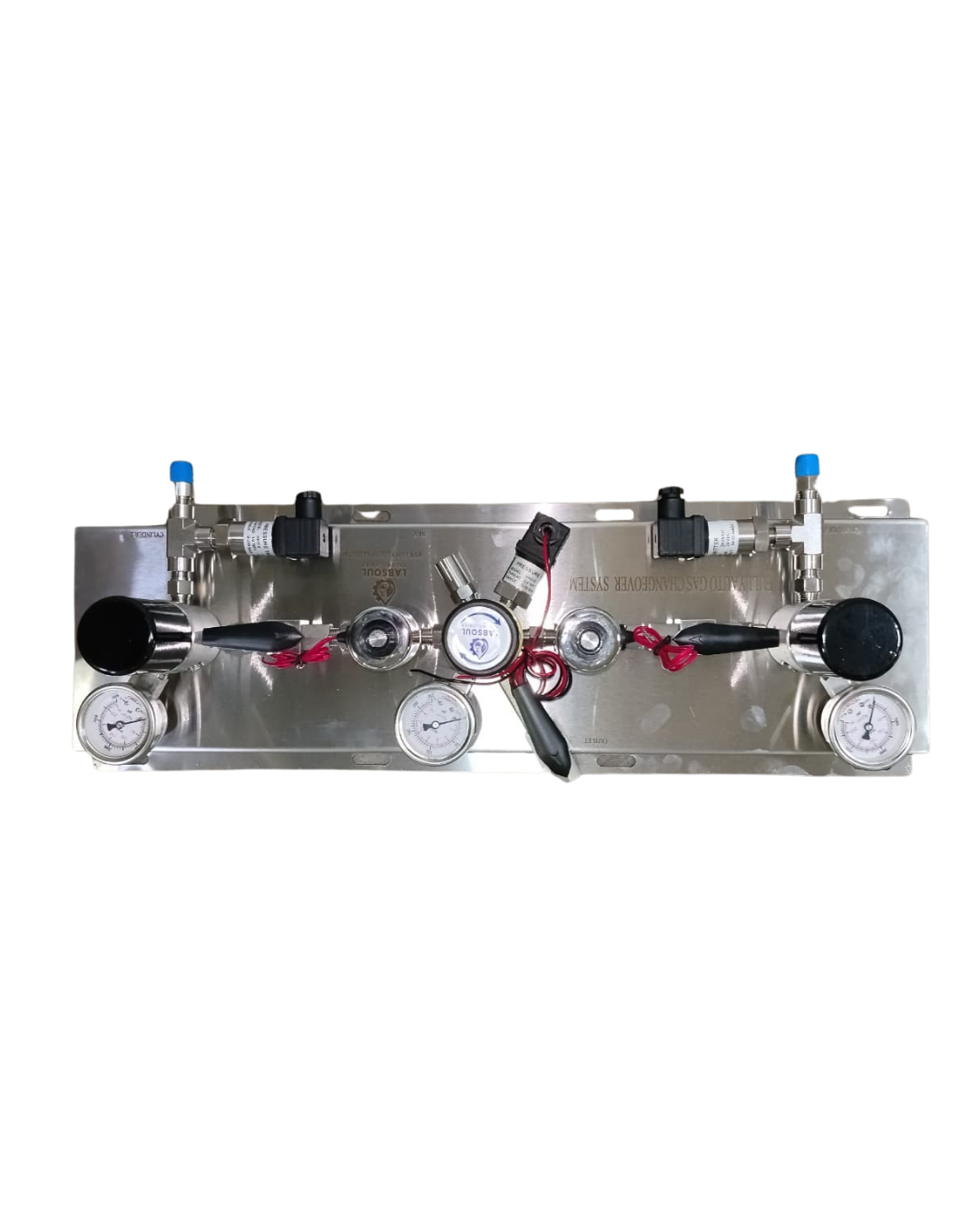

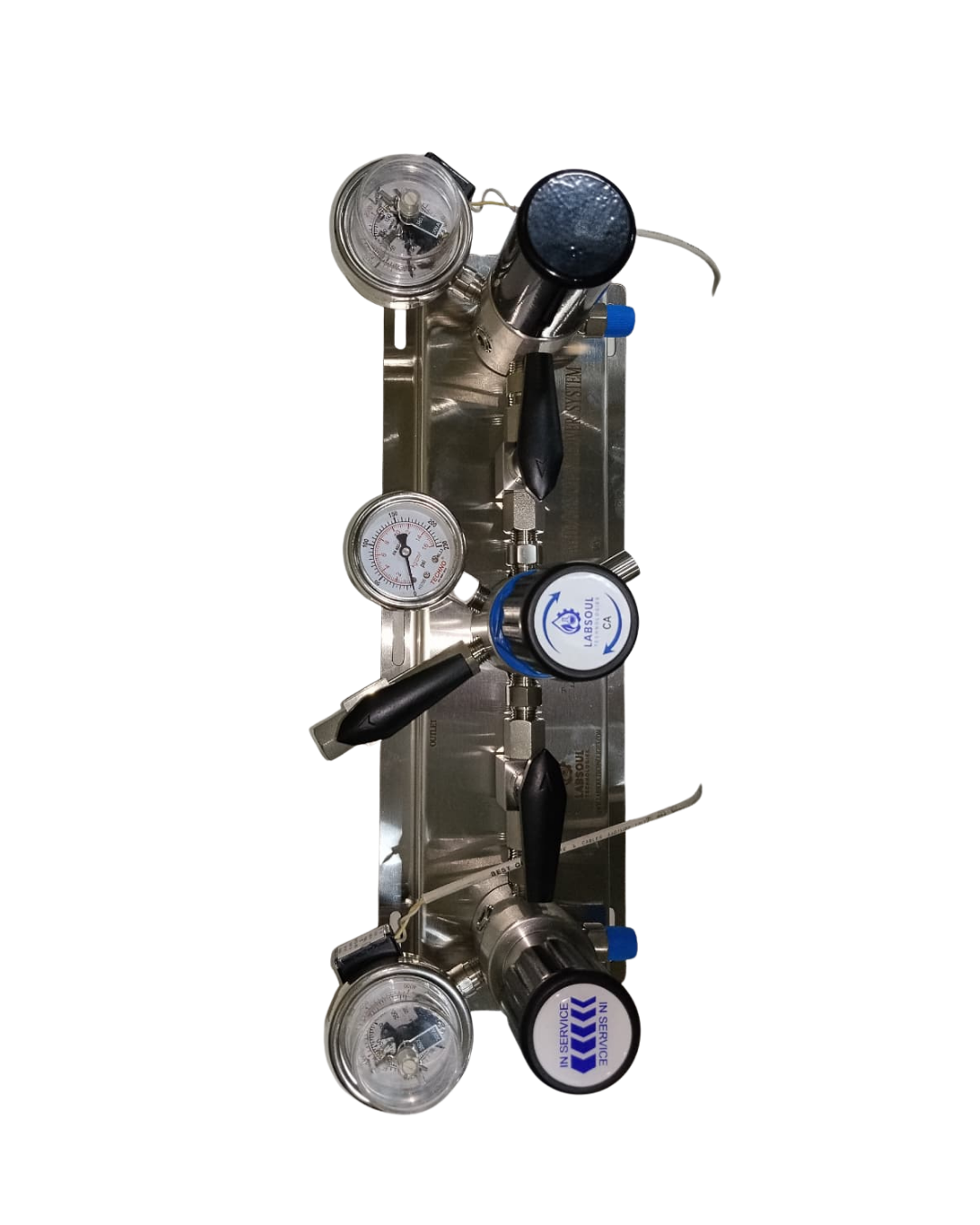

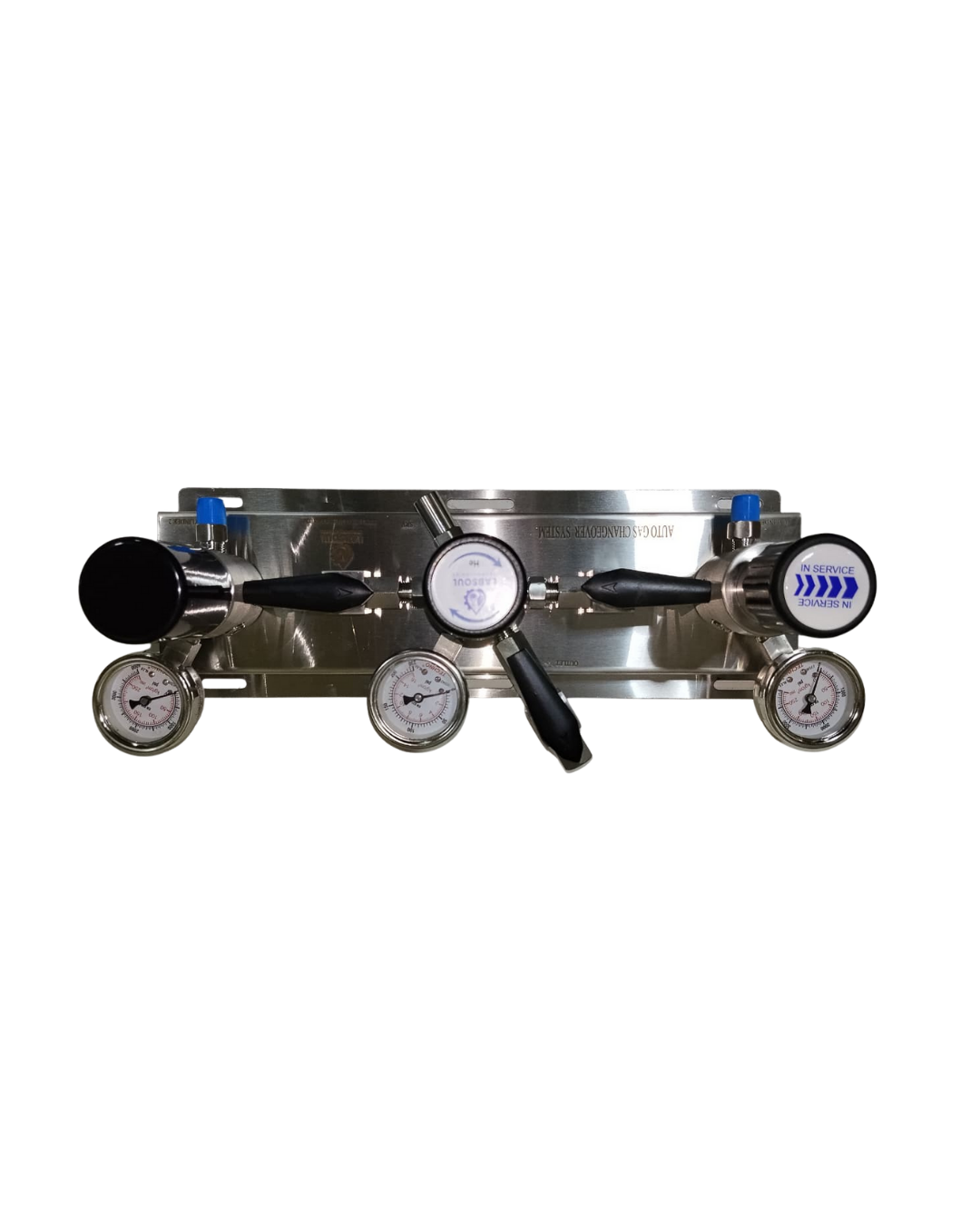

The Gas Supply Panel – Double Cylinder (S23 Series) is designed to provide a continuous and reliable gas supply by connecting two gas cylinders to a single distribution system. It reduces high cylinder pressure to a safe and controlled low pressure using a single-stage regulator with diaphragm design. The panel includes inlet and outlet pressure gauges, a robust regulator body, optional safety relief valve, and variable outlet connections as per application requirements. Manufactured using SS316L, brass chrome plated, monel, or hastelloy materials, it offers excellent corrosion resistance and burst protection. This gas supply panel is ideal for laboratories, pharmaceutical industries, welding and cutting operations, chemical and petrochemical plants, and pilot plant installations.
Available Systems
Key Specifications
- ✓• Double cylinder gas supply configuration ×
- ✓• Single diaphragm design ×
- ✓• Body & bonnet: SS316L / Brass chrome plated / Monel / Hastelloy ×
- ✓• Diaphragm: SS316L / Monel / Hastelloy ×
- ✓• Inlet pressure gauge: SS316L or Brass ×
- ✓• Outlet pressure gauge: SS316L or Brass ×
- ✓• Outlet pressure range: Max 0–18 bar ×
- ✓• Leak integrity: < 1 × 10⁻⁶ mBar l/s (Body), < 1 × 10⁻³ mBar l/s (Seat) ×
- ✓• Working temperature: -50°C to +200°C ×
- ✓• Purity: 6.0 ×
- ✓• Outlet connection options: 1/8", 1/4", 3/8", 1/2" (PU / ODCF / BSP / NPT) ×
- ✓• Maximum flow: 450 LPM @ 18 Bar ×
- ✓• Safety relief valve optional ×
- ✓• Wall mounting arrangement available ×
Applications & Use Cases
• Welding and cutting industries ×
• Laboratories and research facilities ×
• Pharmaceutical manufacturing units ×
• Chemical and petrochemical industries ×
• Autoclave and pilot plants ×
• Industrial gas supply systems ×
• Gas distribution panels ×
