Line Regulators

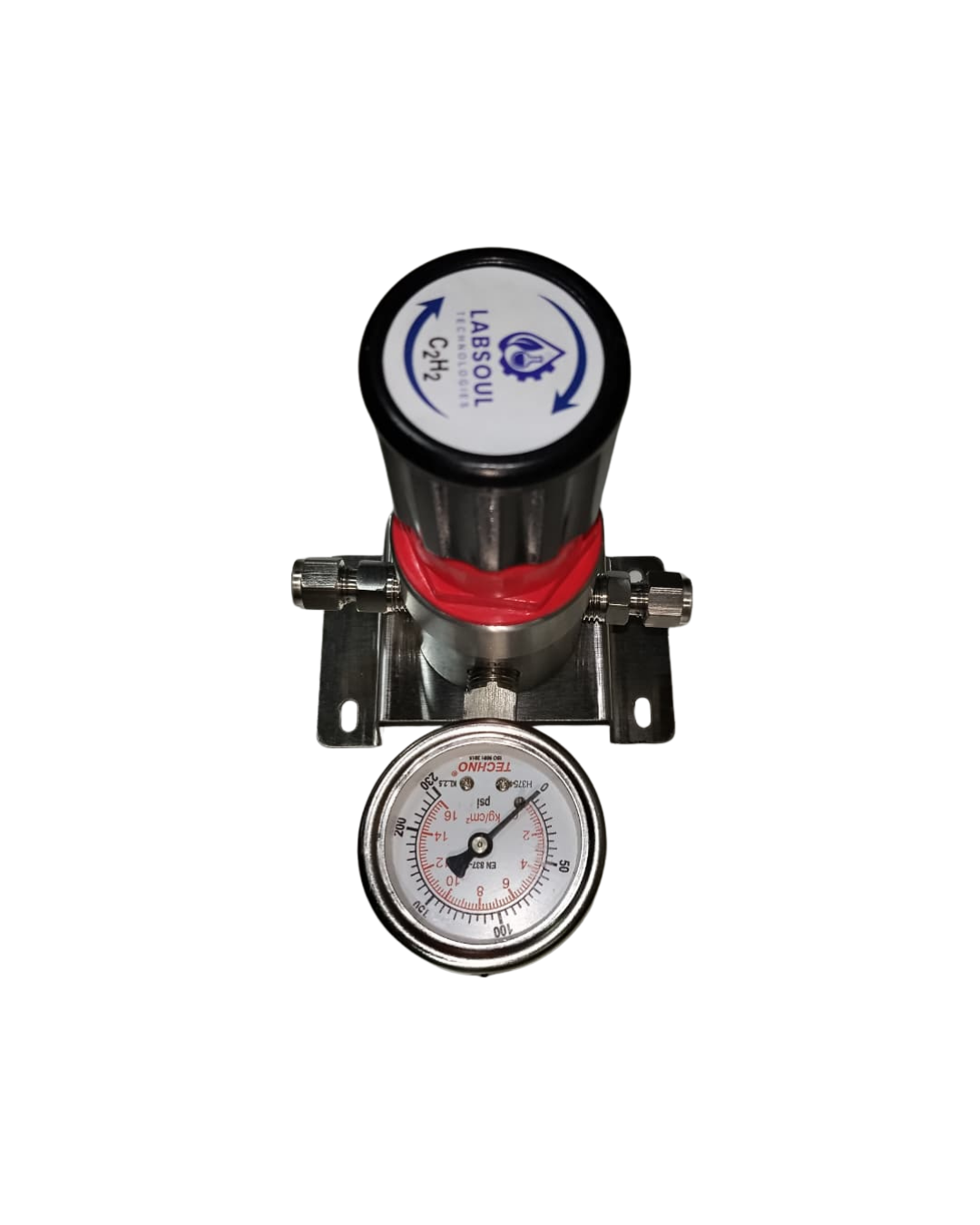

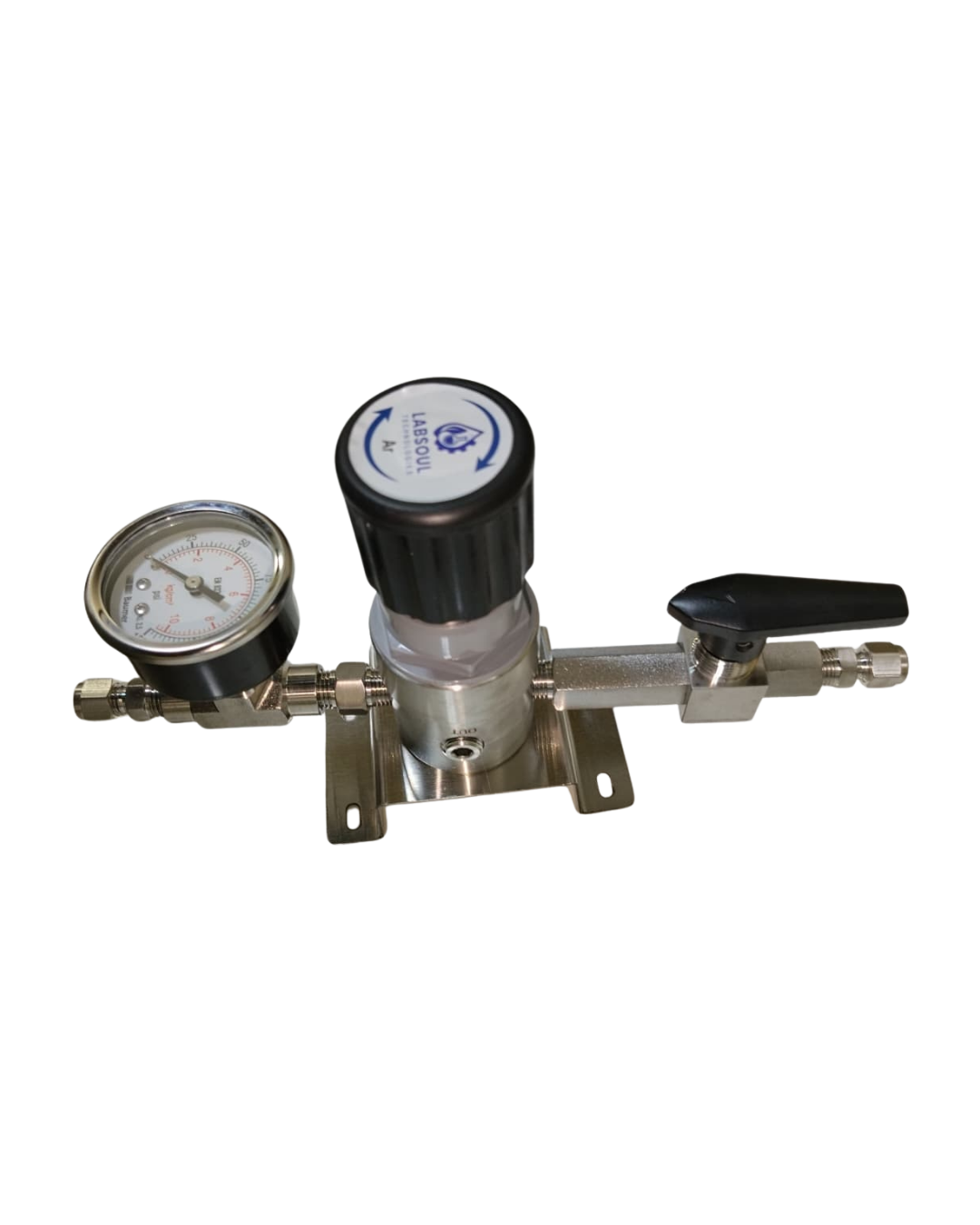

This single-stage diaphragm-type line regulator is engineered to reduce high line pressure to a precise and stable low pressure for safe gas distribution. It consists of a robust regulator body, outlet pressure gauge, optional safety relief valve, and variable outlet connections as per application requirements. Manufactured using SS316L, brass chrome plated, monel, or hastelloy materials, it provides excellent resistance against corrosion and pressure burst, making it ideal for use with industrial and specialty gases. The regulator is suitable for laboratories, pharmaceutical plants, welding and cutting industries, chemical and petrochemical applications, and pilot plants.
Key Specifications
- ✓Single diaphragm design
- ✓Body & bonnet: SS316L / Brass chrome plated / Monel / Hastelloy
- ✓Diaphragm: SS316L / Monel / Hastelloy
- ✓Outlet pressure gauge (SS316L or Brass)
- ✓Outlet pressure range: Max 0–18 bar
- ✓Leak integrity: < 1 × 10⁻⁶ mBar l/s (Body), < 1 × 10⁻³ mBar l/s (Seat)
- ✓Working temperature: -50°C to +200°C
- ✓Purity: 6.0
- ✓Outlet connection options: 1/8", 1/4", 3/8", 1/2" (PU / ODCF / BSP / NPT)
- ✓Maximum flow: 450 LPM @ 18 Bar
- ✓Safety relief valve optional
- ✓Wall mounting arrangement available
Applications & Use Cases
• Welding and cutting industries
• Laboratories and research facilities
• Pharmaceutical manufacturing units
• Chemical and petrochemical industries
• Gas distribution and pipeline systems
• Pilot plants and process industries
• Industrial gas supply systems
• Analytical and testing equipment
